C22.8 Flange

EN 10222-2 P250GH Blind Flanges

DIN 1.0460 Slip On Flanges

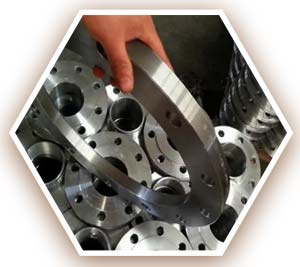

C22.8 Carbon Steel Weld Neck Flange

Table of Content

C22.8 Flange Specification
C22.8 Carbon Steel Forged Flange Price
EN 1092-1 C22.8 Pipe Flange Temperature Range
C22.8 Chemical Composition
Yield Strength Of C22.8 DIN 17243 Steel Flange
C22.8 Material Equivalent ASTM
P250GH/C22.8 Impact Test
Density For EN 10222-2 P250GH Weld Flange
DIN 1.0460 Forged Steel Flange Melting Point
P250GH Flange Tensile Strength
Types Of C22.8 Steel Flange

Manufacturer of EN 10222-2 P250GH Plate Flanges in India as per PN10/16/25/40

C22.8 Flange Specification

Most Selling Size :

NPS: ½” to 48″
DN15 – DN1500
PN 2.5 – PN 400

Melting Point :

1480°C

Advantages :

Good Ductility
High Strength
Good Corrosion Resistance

Available THK :

SCH 120/ 140
SCH 160/ 180
SCH 10/ 20/ 40
SCH 60/ 80/ 100

Pressure Level :

125 To 150 LB
300 To 400 LB
600 To 900 LB
1500 To 2500 LB

International Standard :

ASME B16.5
EN 1092-1
EN 1092-2
PN10/16/25/40

Forging Temperature :

-10°C to 480°C

Hardness In HB :

187 (maximum)

Max Service Temperature :

500°C

Mchining Technique :

Grinding
Deep hole drilling
Turning
Milling

Threads Types :

BSPP (Male & female)
NPT
MPT/ BSPT (Female)
BSP
FPT
MNPT (Male)

Test Certificates :

Third Party Inspection
EN 10204 3.2
100% Radiography Test
NACE MR0175
MTC BS EN 10204 3.1

Facing Types :

LJ face (Lap joint)
FF face (flat)
RTJ face (Ring type joint)
M&F face (Male & female)
T&G face (Tongue & groove)
RF face (Raised)

Surface Finish :

Cold water finish
Serrated finish
Spiral serrated
Concentric serrated
Stock finish
Smooth finish
Mirror finish

Applications :

Oil & gas plants
Petrochemicals industry
Petrochemical plants
Nuclear energy sector
Sea water exchanger
Power generation plant

Packaging :

Carton box
Plastic bag
Wooden case
Custom as required

Logistics:

Qatar = 7 day
Oman = 5 to 6 days
Saudi Arabia = 7 to 8 day
Bahrain = 9 to 10 days
UAE = 6 to 7 day
By Sea
By Train
By Air

Connection Types :

Threaded (TH)
Welded (Welding)

Marking Formula :

ASME/ ASTM Standard
Material
Pressure Class
Material Origin
Facing Type
Manufacturer logo
Grade
Sizes

Density :

7.85 g/cm³

Shear Modulus :

23.0 °C = 82 GPa

Manufacturing Way :

Forged
Plate

Testing & Inspection :

PMI test
Visual inspection
Impact test
Material inspection
Tensile test
Hardness test

Elongation :

19 – 25 %

C22.8 Carbon Steel Forged Flange Price

Types = Weld Neck Flanges

Size	Class	Material	Face Types	Price In US (Dollar) Per Unit
DN40	PN40	P250GH	RF/RTJ	US $10.15
DN50	PN40	P250GH	RF/RTJ	US $13.78
DN80	PN40	P250GH	RF/RTJ	US $19
DN100	PN40	P250GH	RF/RTJ	US $21.66

Check Temperature Range of C22.8 DIN 17243 Blind Flange, and C22.8 Steel Pipe Flanges Chemical Requirements

EN 1092-1 C22.8 Pipe Flange Temperature Range

Maximum 450 °C

C22.8 Chemical Composition

Manganese [Mn] :

0.40 – 0.90%

Silicon [Si] :

0.40 max

Phosphorus [P] :

0.035 max

Sulfur [S] :

0.030 max

Carbon [C] :

0.18 – 0.23

Aluminium (Al) :

0.015 – 0.050

Chromium (Cr) :

0.30 max

Supplier of P250GH Flange in size DN15 to DN 80 in Class 150 To 2500 in Mumbai, View Yield Strength

Yield Strength Of C22.8 DIN 17243 Steel Flange

ReH N/mm2 = 240 (min)

C22.8 Material Equivalent ASTM

EN :

C22.8

USA :

SAE1020

Germany (DIN) :

1.0460

JIS (Japan) :

S20C

PN (Poland) :

BS (England) :

070M20

UNI (Italy) :

CSN (Czechia) :

12024

GB (China) :

SS (Sweden) :

1450

GOST (Russia) :

Stockist of EN 1092-1 C22.8 Weld Neck Flange In Variety of Sizes, Check DN80 PN40 C22.8 Slip On Flange Impact Test and Density

P250GH/C22.8 Impact Test

Impact Test (J) = 44 (minimum)

Density For EN 10222-2 P250GH Weld Flange

7.85 kg/dm³

Also Check C22.8 Carbon Steel Forged Flange Melting Point, and Tensile Strength Of EN1092-1 11 B1 C22.8 Pipe Flange as per ASME B16.5

DIN 1.0460 Forged Steel Flange Melting Point

1480 – 1526 °C

P250GH Flange Tensile Strength

Rm N/mm2 = 410 – 540

Types Of C22.8 Steel Flange

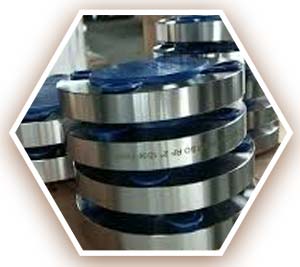

DN80 PN40 C22.8 socket weld flange

EN 1092-1 C22.8 lap joint flange

C22.8 DIN 17243 plate flanges

p250GH/C22.8 long neck flanges

EN 10222-2 P250GH threaded flange

DIN 1.0460 orifice flange
