Details

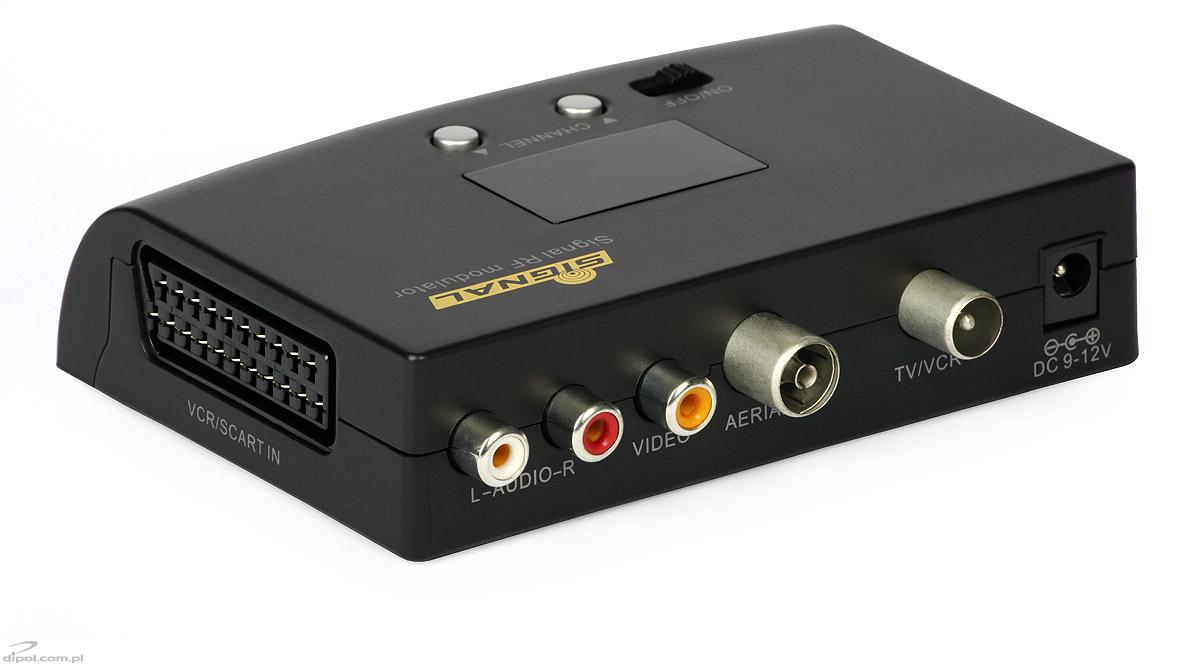

View of the modulator
Top view
The set includes AC/DC adapter and RF lead
View of the packaging
The modulator is designed for use in small antenna installations e.g. in one-family houses.
The device is compliant with D/K standards (5.5/6.5 MHz sound subcarrier). It has digital selection of working channel, from 21 to 69 (the number is displayed). Signal Digital Classic RF modulator has loopthrough both for baseband signals (SCART - SCART), and for RF (2 x IEC).
Specifications
| Name | Signal Digital Classic | |
| Code | R95176 | |
| RF loop | MHz | 45-862 |
| Output RF channel | 21-69 | |
| Input/output RF connectors | IEC fem. / male 75 ohm | |
| AV inputs / output | RCA, SCART / SCART | |
| Video input impedance | ohm | 75 |
| Audio input impedance | kohm | 10 |
| Power (AC/DC adapter incl.) | V DC | 9 |
Specifications
| nazwa |
Signal Digital Classic |
|
| kod |
R95176 |
|
| zakres częstotliwości przenoszenia (przelot RF) |
MHz |
45-862 |
| zakres kanałów wyjściowych RF |
21-69 |
|
| złącze wejściowe/wyjściowe RF |
IEC żeńskie / męskie, 75 Ohm |
|
| wejścia / wyjścia AV |
RCA, SCART / SCART |
|
| impedancja wejściowa wideo |
om |
75 |
| impedancja wejściowa audio |
kom |
10 |
| zasilanie |
V DC |
9 |
