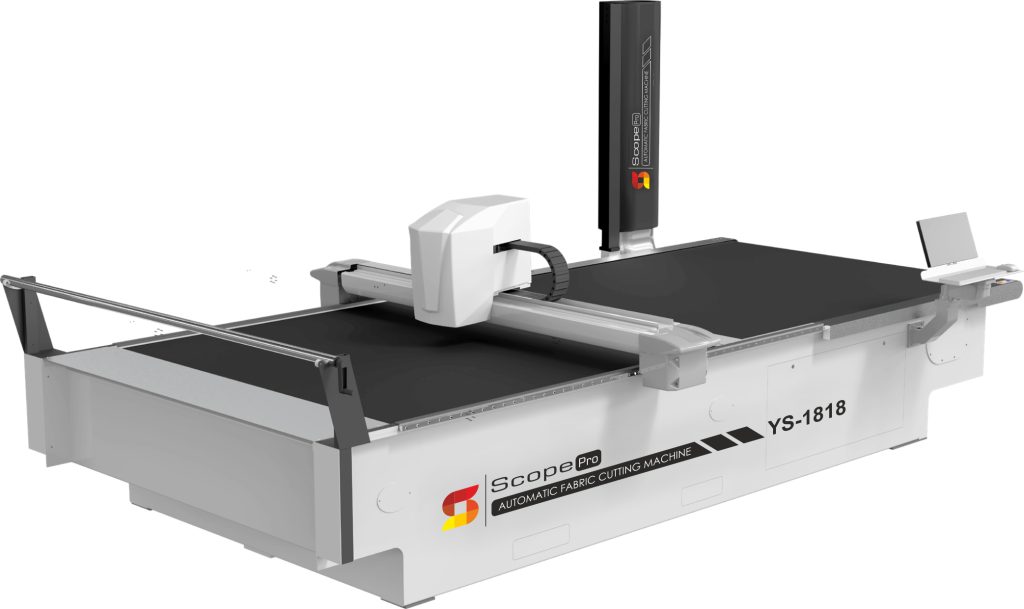

Intelligent Automatic Fabric Cutting Machine
Machine Features
Smart Conveyor & Vacuum System
- Simultaneous cutting while forwarding
- Non-stop fabric cutting
Robust & Futuristic Cutting Head
- Smart blade correction sensor
- Unique blade sharpening mechanism
- Automatic push case adjustment
- Cutting height up to 9 CM
Rack & Pinion Mechanism
- Stable & precise head movement
New Interface With Smart Software
- Queue based marker system
- Parameter presets
- Repetitive cutting option
- Start new marker from any point
Parameters
| Specification | YS-2018 | YS-1818 |
|---|---|---|
| Cutting Height (Compressed) (mm) | 90 | 90 |
| Effective Cutting Area (L×W) (mm) | 1800 × 2000 | 1800 × 1800 |
| Dimensions (mm) | 4920 × 2630 | 4920 × 2230 |
| Cutting Knife Size (mm) | 2.4 × 8.5 | 2.4 × 8.5 |
| Cutting Speed (Max) (m/min) | 15–20 | 15–20 |
| Acceleration (Max) (m/s²) | 8 | 8 |
| Vibration Frequency (RPM) | 6000 | 6000 |
| Average Power Consumption (KW) | 12 | 12 |
| Movable System | Optional | |
| Drilling Device | Optional | |
| Cooling Device | Optional | |
| Intelligent Blade Adjustment | Standard Configuration | |
| Weight (KG) | 3800–4200 | |
| Operating Platform Height (mm) | 800–900 | |
| Voltage (V/Hz) | 380/50 | |
| Power (KW) | 30 | |
| Compressed Air Flow (m³/h) | 2.5 | |
| Compressed Air Pressure (Mpa) | 0.7 | |
| Noise Level (dB) | <73 | |
| CAD Compatible | Cut file, ISO6983, RS274D, DXF, PLA, PLX | |
| Operating System | Windows | |
| Vacuum Negative Pressure (Max) | -22 Kpa | |
