PV Smoothing implementation does not account for dispatch SOC limits #815

@brtietz

Description

@brtietz

Describe the bug
PV smoothing dispatch can produce dispatch plans that lead to violations that aren't recorded, since the smoothing algorithm things all of the energy in the battery is available, when it may be subject to SOC limits.

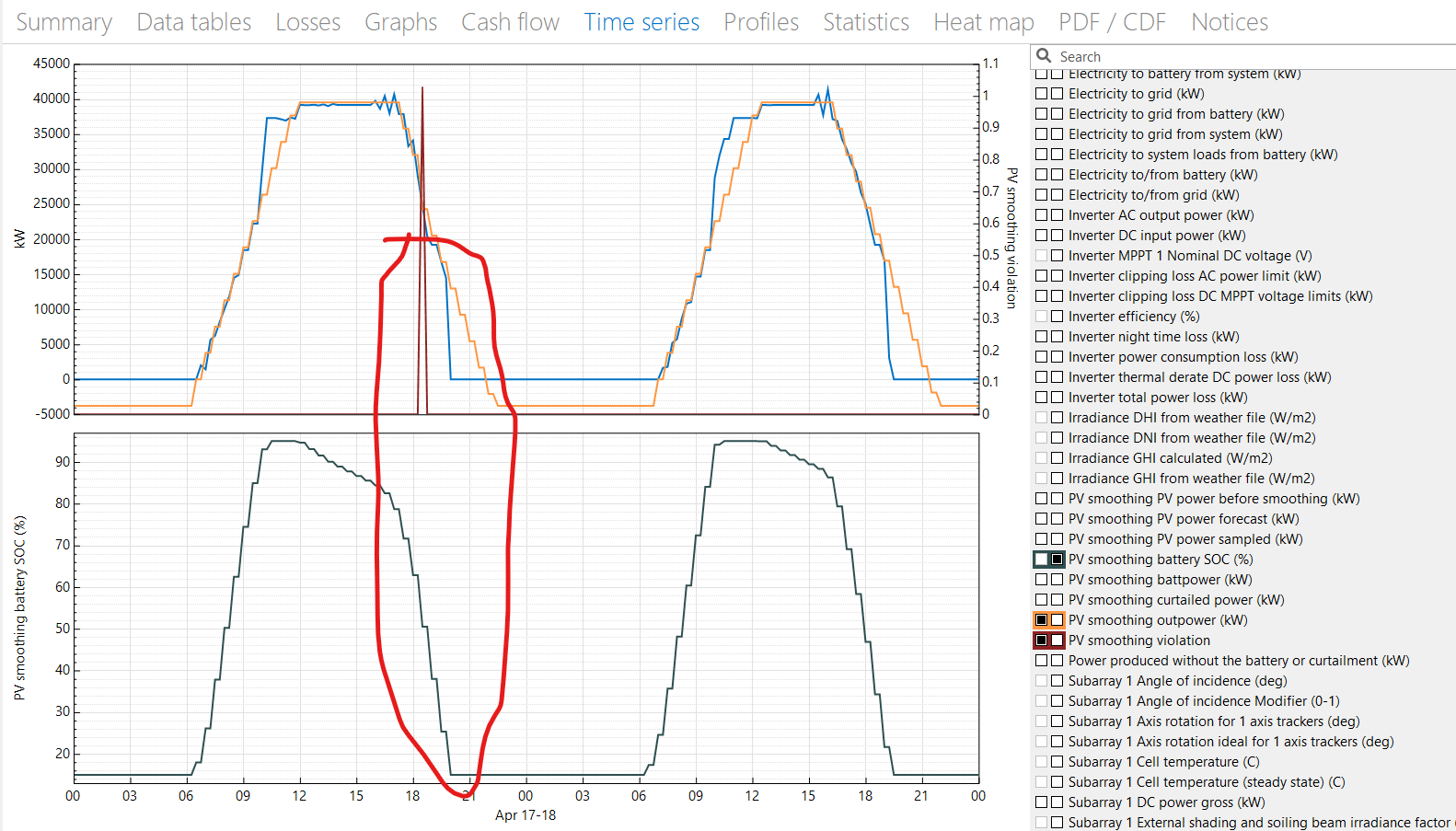

The screenshot below has a minimum SOC of 15%:


In the red circle (and again the next day) PV smoothing expects continued battery discharge.

To Reproduce
Steps to reproduce the behavior:

  1. Run the attached SAM file:
    pvsmoothing_soc_issues.zip

  2. Compare PV Smoothing Outpower and Gen for the limited SOC case

Expected behavior
PV Smoothing should be aware of dispatch limits

Desktop (please complete the following information):

  • Version 2021.12.02r1
